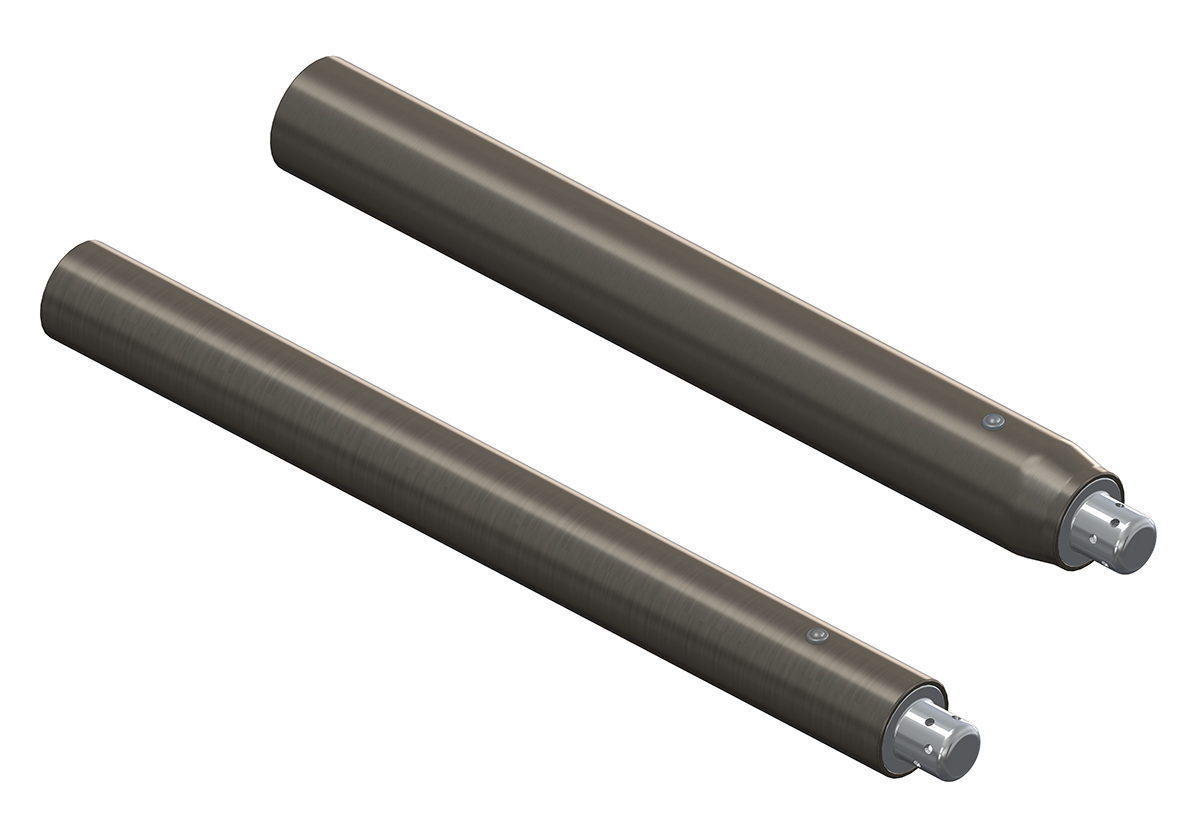

Side/Curtain/Knee: CH5

CH5 was specifically designed for rollover curtain airbag applications. With multiple tailoring knobs, CH5 offers low stagnation temperature which results in extended ejection mitigation protection while providing good first impact performance.

30 mm and 35 mm diameter designs in various lengths: 185 – 385 mm

Hybrid technology with small generant charges

Performance range: 1.1 to 3.6 mole

Various interface options including: vessel, crimp manifold, and radial mounted stud(s)
